3 KW Vesselnet-BC (450Vdc PV Input) Inverter

250,000.00 200,000.00

Vesselnet-BC (450Vdc PV Input)

3KW Inverter in Nigeria

Features:

  • Rated power 3KW
  • MPPT ranges 120V~450V, 500Voc
  • With the ability to work without battery
  • Pure sine wave AC output
  • Solar and utility grid can power loads at the same time
  • With CAN/RS485 for BMS communication
  • WIFI/ GPRS remote monitoring (optional)
  • Parallel operation for Sunforce-BC 3KW (optional)
Category:

Description


  • High PV Voltage Input

    PV input 500Voc


  • MPPT Solar Charge Controller

    Inbuilt 100A MPPT


  • Pure Sine Wave

    Pure sine wave output

LCD Display Information

1. LCD Display
2. Status indicator
3. Charging indicator
4. Fault display
5. Function buttons

Bottom Panel

System Connection

This is a multi-function machine, combining functions of inverter, MPPT solar charger and UPS module to offer uninterruptible power support with portable size. This inverter can work with or without batteries. With the CubeWiFi/CubeGPRS accessory, you can monitor the status anytime anywhere

System Connection

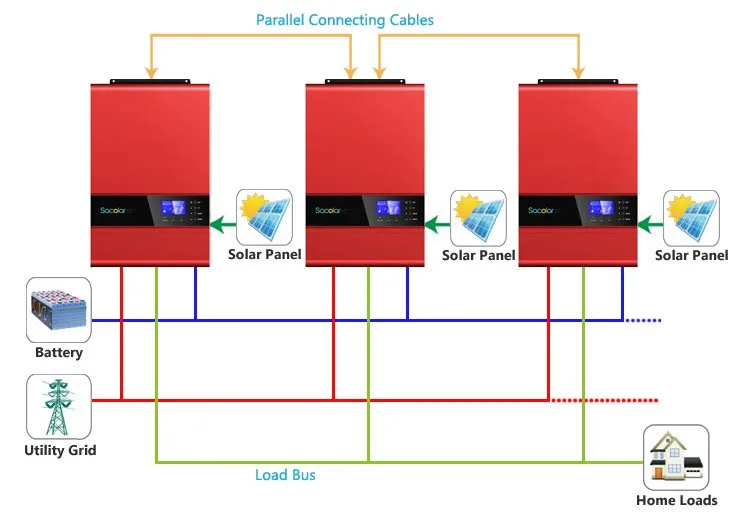

Series parallel connecting:

Specification

Vesselnet MHP series, with MPPT controller:

Model
MHP-2KW
Vesselnet MHP-3KW
Vesselnet MHP-4KW
 Vesselnet MHP-5KW
Input / Output Voltage
DC 24V / AC 220V
DC 24V / AC 220V
DC 48V / AC 220V
DC 48V / AC 220V
Max. PV Power
1000W
1000W
4000W
4000W
Max. PV Charge Current
40A
               40A
80A
80A
AC Charge Current
30A
30A
60A
60A



Model No.
Vesselnet-MLP 4KW Vesselnet-MLP 5KW Vesselnet-MLP 6KW Vesselnet-MLP 8KW Vesselnet-MLP 10KW Vesselnet-MLP 12KW



Input Data(DC)
Max. DC Power
5 kW 5 kW 5 kW 5 kW 5 kW 5 kW



Max. DC Voltage
147 V 147 V 147 V 147 V 147 V 147 V



Min. DC Voltage to Start Feed In
64 V 64 V 64 V 64 V 64 V 64 V



MPP(T) Voltage Range
64~147 V 64~147 V 64~147 V 64~147 V 64~147 V 64~147 V



No of MPP Trackers
1 1 1 1 1 1



Output Data (AC)
Max. AC Power
4 kW 5 kW 6 kW 8 kW 10 kW 12 kW



Output AC Voltage Range
154~272 V 154~272 V 154~272 V 154~272 V 154~272 V 154~272 V



Nominal AC Voltage
220, 230, 240 V 220, 230, 240 V 220, 230, 240 V 220, 230, 240 V 220, 230, 240 V 220, 230, 240 V



Frequency Range
49.7-60.3 Hz 49.7-60.3 Hz 49.7-60.3 Hz 49.7-60.3 Hz 49.7-60.3 Hz 49.7-60.3 Hz



Frequency
50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz



Power Factor (cosθ)
1 1 1 1 1 1



No of feed-in phases
1 1 1 1 1 1



General Data
Dimensions (H/W/D)
620x385x215 mm 620x385x215 mm 620x385x215 mm 670x410x215 mm 670x410x215 mm 670x410x215 mm



Weight
45 kg 45 kg 45 kg 76 kg 76 kg 76 kg



Operating Temperature -0 ~ +40 ℃
Transformer Low Frequency-Transformer
Protection Class IP20
Cooling Fan
Interface RS 232, RS 485, Ethernet, USB, WLAN
Display LCD, LED
Protection Features
Protection Features Short Circuit Protection, Overload Protection, Over voltage Protection, Over current Protection, Over temperature Protection, Residual Current Device (RCD), Reverse Polarity Protection, Surge Protection
