Shoto FTC – 150 VRLA Maintenance – free Sealed Lead Carbon Front Terminal Battery for Telecom / Energy Storage / UPS

120,000.00

Category:

Description

Brand Name:
Shoto
Model Number:
FTC – 150
Nominal Capacity:
150 AH
Usage:
Telecom, Energy Storage and UPS
Sealed Type:
Sealed
Maintenance Type:
Free
Weight:
56 KG
Application:
Telecom / Energy Storage / UPS
Color:
Grey
Certificate:
CE / UL / ISO9001 / ISO18001 / ISO14001
Battery type:
Sealed VRLA Battery
Type:
Gel Battery
Product name:
12V 150AH Lead Carbon Battery
Capacity:
150Ah 10hr Rate
Material:
High Pure Lead
Terminal:
M6
Voltage:
12v
Size:
552*125*286/310 mm
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
To be packed in strong wooden cases or cartons, suitable for long distance ocean, parcel post or air freight transportation as well as changing climate and with good resistance to moisture and shocks.
Port
Shanghai Port
Product Description
Shoto FTC – 150 VRLA Maintenance – free Sealed Lead Carbon Front Terminal Battery for Telecom / Energy Storage / UPS
Normal Voltage
12V
Capacity
150Ah @ 10hr to 1.80V @ 25˚C(77˚F)
Weight
56 kg (123.46 lbs)
Dimensions

Length: 552 mm

Width: 125 mm
Height: 310 mm
Total height: 310 mm
Internal Resistance (full charged)
5.5 mΩ
Short-circuit Current
1659A
Self Discharge @25˚C(77˚F)
Less than 4% after 30 days storage

Operating Temperature Range

Discharge: -40˚C ~ 65˚C(-40˚F ~ 149˚F)

 Charge: -20˚C ~ 45˚C(-4˚F ~ 113˚F)
Storage: -20˚C ~ 40˚C(-4˚F ~ 104˚F)
Recommended Operating Temperature
15˚C ~ 35˚C (59˚F ~ 95˚F)
Recommended Charging Current
45 A
Charging Voltage @25˚C(77˚F)

 Float: 2.23 V/cell

 Cycle: 2.35 V/cell
Terminal
M6

Capacity Affected by Temperature

105 % @ 40˚C

85 % @ 0˚C
60 % @ -20˚
Design life @25°C
15 years

Main Applications

1. Renewable energy (wind & solar) site
2. Off-grid & bad-grid environment
3. Communication and signal systems
4. UPS and emergency illumination
5. IDC

Benefits

1. Reduce operational cost (less cooling consumption)
2. Reduce CO2 emission
3. Deep cycle rate life≥1500 (at 25°C, 60%DOD) &1350 (at 35°C, 60%DOD)
4. Good floating life performance and extremely high cyclic life

Technical Features

1. Best performance for continuous operation up to 35˚C
2. Using advanced lead carbon technology, reduce the cathode sulphation
3. Front terminal connections for fast and easy installation and maintenance
4. Horizontal structure design, delay electrolyte stratification, extend battery service life
Specific Parameters

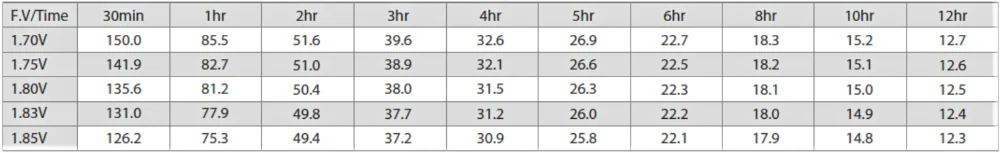

Constant Current Discharge Characteristics Unit: A (35ºC, 95ºF)

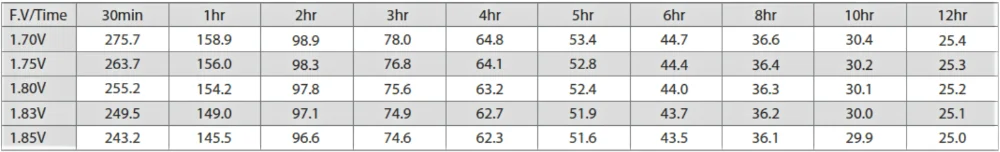

Constant Power Discharge Characteristics Unit: W/cell (35ºC, 95ºF)

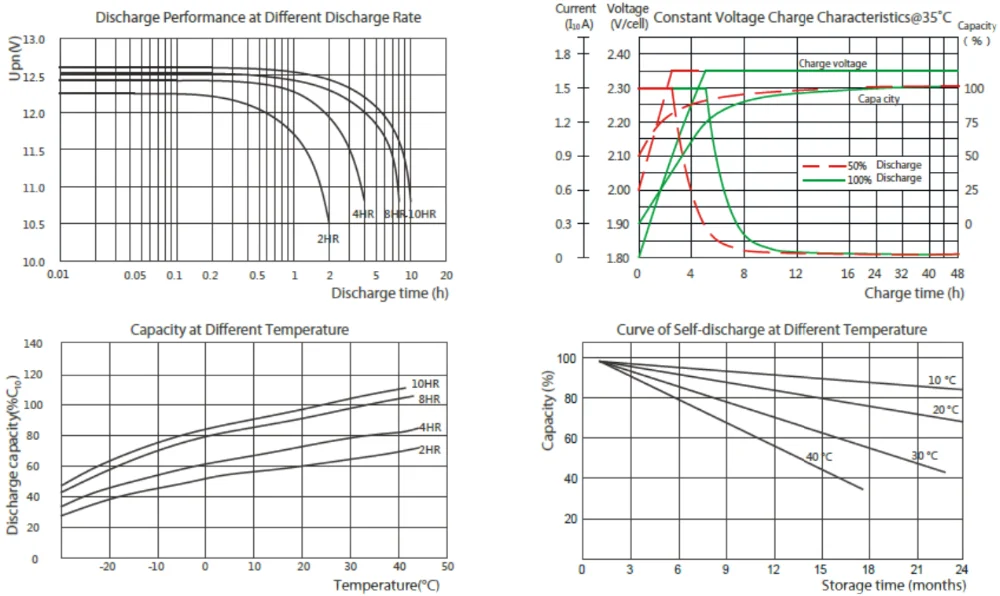

Performance Curve
